Boom Lift 60′ working ht. (articulated) Tow-Behind

Daily Rate:

$245.00

SKU: 3530 Category:

Description

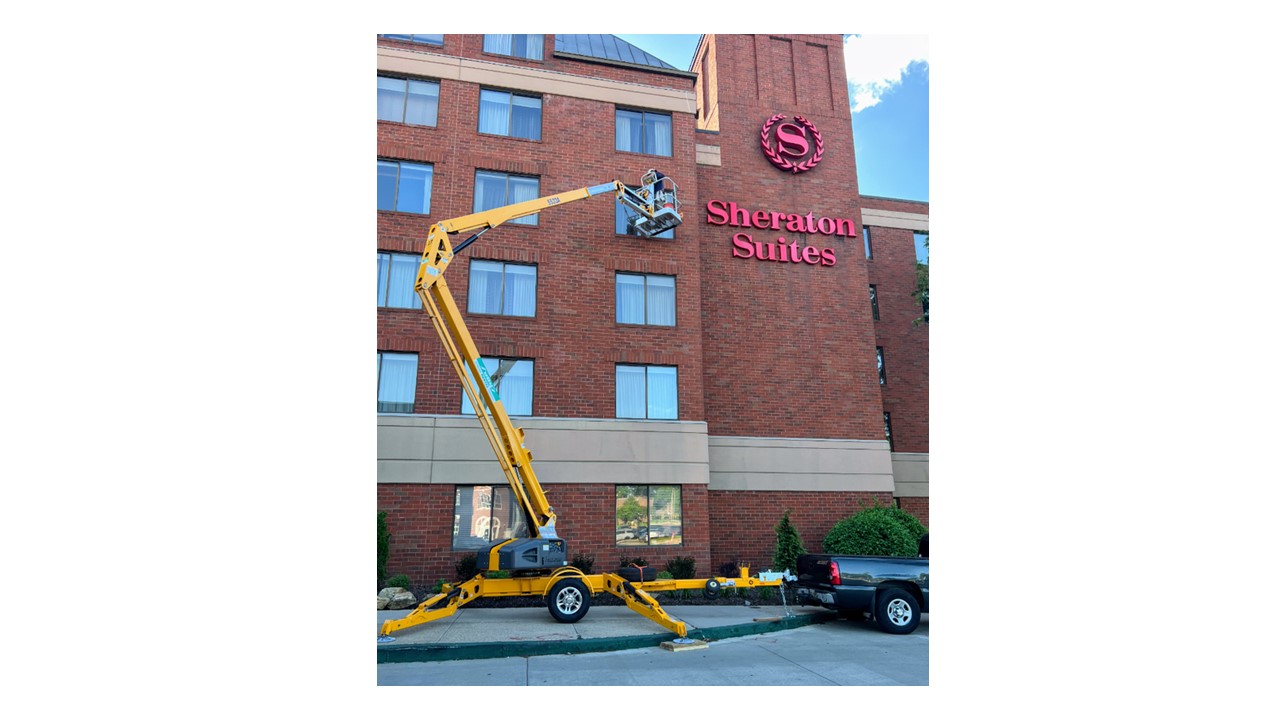

Haulotte Biljax 5533A

  • Working Height – 61′ 3″
  • Platform Height – 55′ 3″
  • Horizontal Outreach (From Centerline) – 33′ 5″
  • Horizontal Outreach (From Edge of Footpad) – 27′ 4″
  • Up an Over Height – 23′ 1″
  • Lift Capacity – 500 lbs.
  • Length Stowed – 23′ 8″
  • Width Stowed – 5′ 7″
  • Height Stowed – 6′ 9″
  • Platform Size – 4′ 1″ X 2′ 9″
  • Turntable Rotation – 350° Non-Continuous
  • Jib – Length – 4′ 3″
  • Jib – Vert Motion – 150° (+70 / – 80)
  • Tow Speed Rating – 65 mph
  • Leveling Capability – 5°
  • Tire SIze – ST 225 / 75 R15
  • Power Source – 4 x 6 V 245 amp/hr
  • Tongue Weight – 335 lbs.
  • Weight – 4800 lbs.
  • Widest Point – 15′
