Description

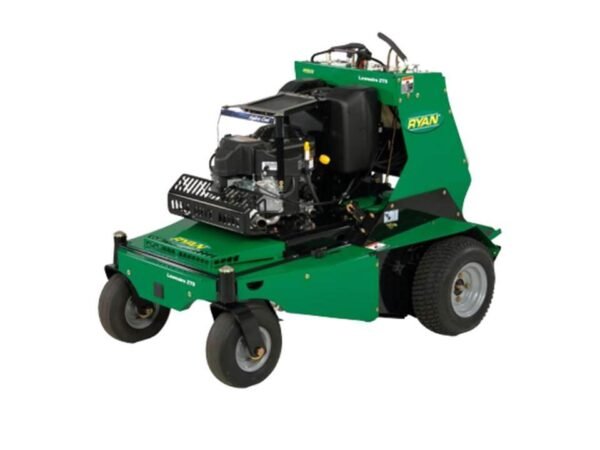

Ryan – Lawnaire ZTS
- Engine – Kawasaki® FS541V
- Displacement – 30.8 cu in. (603 cc)
- Fuel Capacity – 5 gal
- Transmission – 2 Hydro-Gear® ZT3200™
- Hydraulic Oil Capacity – 7 qt
- Ground Speed – FWD 0-7.4 mph
- Drive Tires & Wheels – 18 x 6.50-8; pneumatic
- Front Caster Tires & Wheels – 13 x 5.00-6; pneumatic
- Aeration Width – 30 in.
- Tines (# of) – 48
- Tine Down Pressure – 0-700 lb
- Core Depth – 2-5 in.
- Holes Per Square Foot – Up to 5.1
- Width – 47.25 in
- Length – 60.5 in. platform up (69.5 in. -down)
- Height – 48 in.
- Curb Weight – 1,235 lb
- Productivity – Up to 97,800 sq ft/hr
